Step 5 - Using Inventory Flow

Overview

The purpose of this guide is for game makers to setup a complete inventory experience using Beamable.

Here is everything needed to use the Inventory Flow Feature PrefabFeature Prefab - The drag-and-drop template for a specific Beamable product feature in the "Beamable SDK for Unity". Or watch this video.

Game Maker User Experience

During development, the game maker's user experience is as follows.

Steps

Follow these steps to get started.

Step 1. Create Inventory

First setup the ItemItem - An archetype of a Beamable store object. There may be a single instance or multiple instances of each. data.

Step

Detail

  1. Add the "Inventory Flow" Prefab

• See Inventory Flow for more info

  1. Open the Content Manager

• Unity → Window → Beamable → Open Content Manager

  1. Create "Item" content


• Select the content type in the list • Press the "Create" button • Populate the content name
  1. Configure "Item" content

• Populate all fields

Note: The icons can be set to any valid Unity’s Addressable object.

  1. Open Beamable Configuration Manager

• See Configuration Manager for more info

  1. Configure the "Inventory"

• Create 1 or more "Groups" • Populate all fields

See Configuration of Item Renderers below for more info.

  1. Save the Unity Project

• Unity → File → Save Project

Best Practice: If you are working on a team, commit to version control in this step

  1. Publish the content

• Press the "Publish" button in the Content Manager Window

Result: The data is now setup, but the active user does not yet possess the inventory item(s).

Step 2. Grant Inventory

Now that the ItemItem - An archetype of a Beamable store object. There may be a single instance or multiple instances of each. data is setup, update the active player's InventoryInventory - A collection of Beamable items owned by the active player.

Here the game maker will choose either 2a or 2b.

Step 2a. Grant Inventory (Portal)

Step

Detail

  1. Locate a player's DBIDDBID - The database identification. Beamable generates an anonymous account for the player when the project first runs

• See "Verify Success" on Step 1 - Getting Started

  1. Open the "Toolbox" Window

• Unity → Window → Beamable → Open Beamable Toolbox

  1. Open the "Portal" Window

• Click the "Open Portal" Button

  1. Navigate to desired player's Inventory

• Select the active realm
• Select the "Players" tab
• Search by the DBID from step #1
• Press the "Inventory" button
• Press the "Add Item" button

  1. Add the item
• Select the desired item in the dropdown • Press the "Add" button

See Configuration of Item Schema below for more info.

Step 2a. Grant Inventory (InventoryService)

Name

Detail

  1. Add custom C# code

• See Example below for more info

Verify Success

As an optional step, verify that everything is properly setup. Display the current player's on-screen InventoryInventory - A collection of Beamable items owned by the active player.

Step

Detail

  1. Run the Scene

• Unity → Edit → Play

  1. See the Inventory

Result: The inventory will show the active player's collection of items.

Example

📘

Beamable SDK Examples

This and all examples are available for download at GitHub.com/Beamable_SDK_Examples

Code

See the InventoryServiceExample.cs in the Beamable SDK Example project for a full demo of several methods.

  • InventoryService.AddItem();
  • InventoryService.DeleteItem();
  • InventoryService.GetItems();
  • InventoryService.Subscribe();
  • InventoryService.Update();

Advanced

This section contains any advanced configuration options and workflows.

See Inventory for more info.

Configuration of Item Renderers

The Configuration Manager contains references for rendering.

  • DefaultObjectPrefab - This determines the rendering of this specific ItemItem - An archetype of a Beamable store object. There may be a single instance or multiple instances of each.'s UI. The default value is InventoryObjectUI.

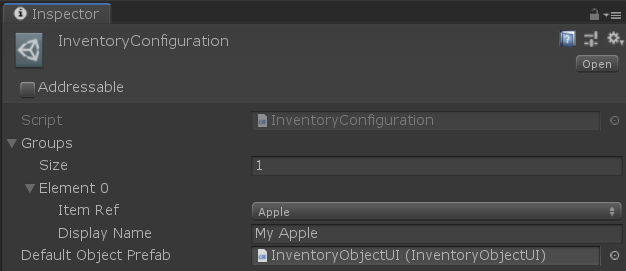

The "Default Object Prefab" within the Beamable Configuration ManagerThe "Default Object Prefab" within the Beamable Configuration Manager

The "Default Object Prefab" within the Beamable Configuration Manager

The defaults are provided automatically for basic functionality. Override as needed for advanced use cases. The default object's source code is viewable and serves as the starting points for creating custom overrides.

Configuration of Item Schema

Each ItemItem - An archetype of a Beamable store object. There may be a single instance or multiple instances of each. has a schema of optional, custom data. This is a powerful way to send more details to your game.

Example: Perhaps, possessing an particular ItemItem - An archetype of a Beamable store object. There may be a single instance or multiple instances of each. in the InventoryInventory - A collection of Beamable items owned by the active player could unlock a special ability of flight to a superhero character.

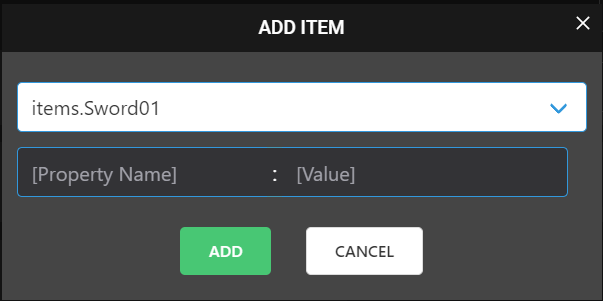

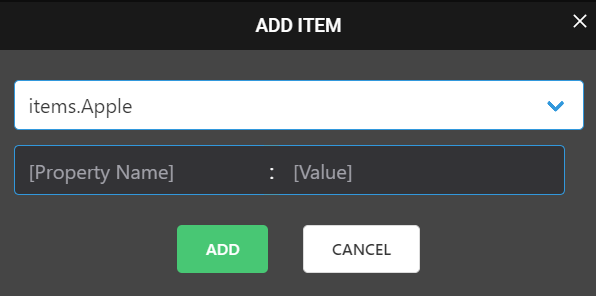

The "Add Item" Window in the PortalThe "Add Item" Window in the Portal

The "Add Item" Window in the Portal

This data is defined as name/value pairs of Property Name and Value from within the Portal.

Permissions

The "Item" in the Unity InspectorThe "Item" in the Unity Inspector

The "Item" in the Unity Inspector

Ensure that the "Client Permission" property of Write_Self is set as true to allow this item to be granted from the client via C#. Or, set Write_Self as false as a safeguard to allow the server to be the exclusive source of items for the game.
